MLN 150/1 rot / red
- Merk: SKS Hirschmann
- Product Code: 934064101
- Beschikbaarheid: E-mail ons voor eventueel lokaal beschikbare voorraad en/of levertijd
€16.64
- Ex Tax: €13.75

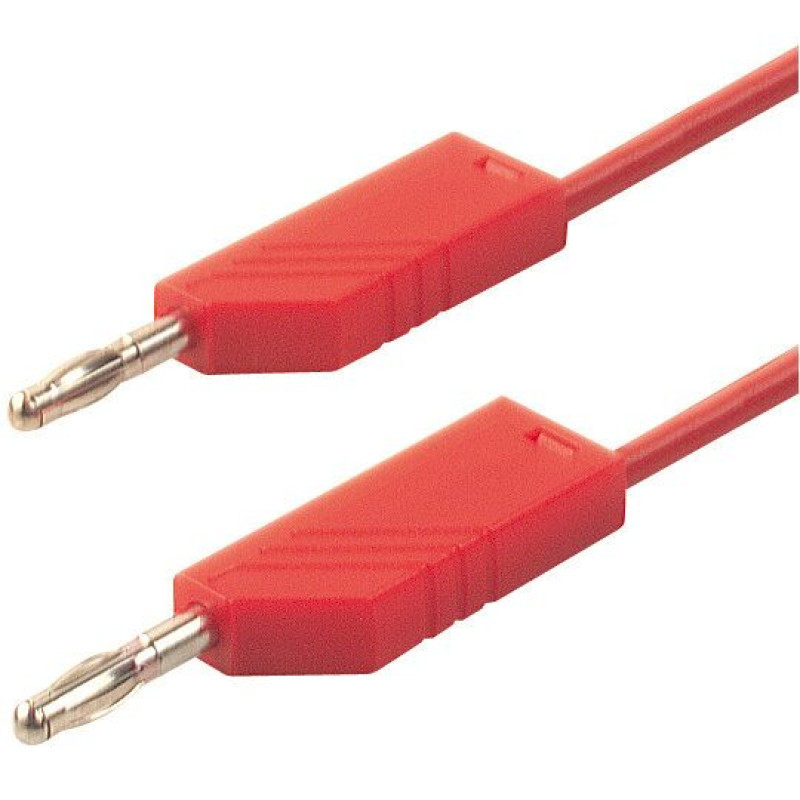

MLN 150/1 rot / red (934064101)

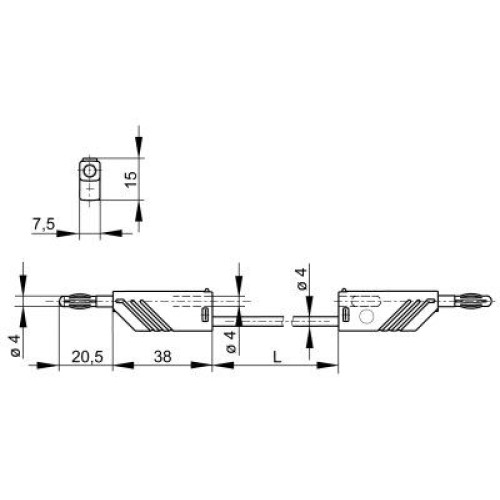

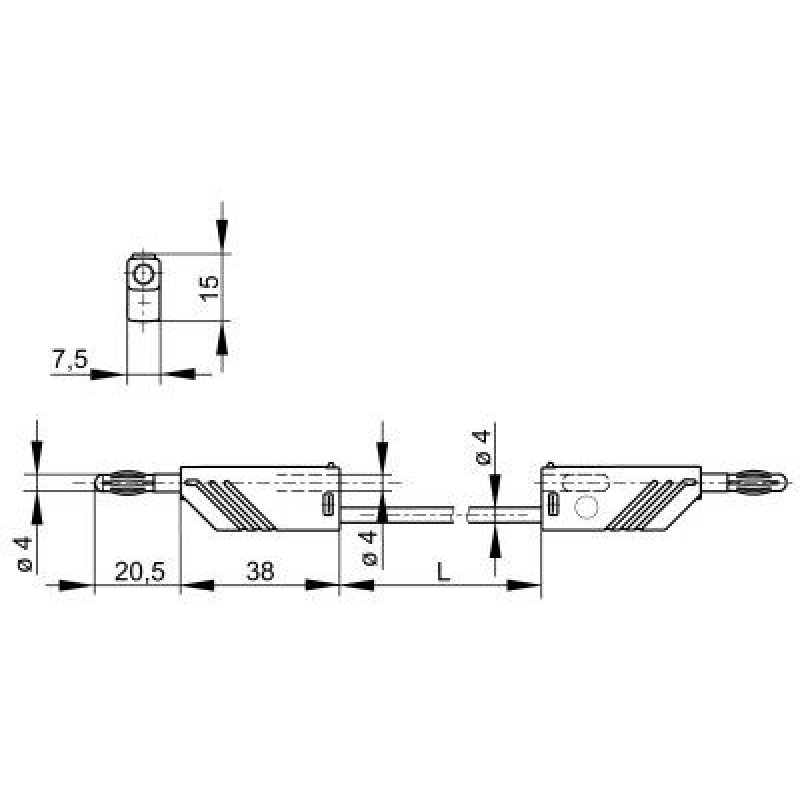

Measuring lead, at either end 4 mm diameter plug with caged spring and 4 mm diameter socket for tower construction. Nickel-plated copper beryllium contact spring. Highly flexible, double insulated stranded lead, grip and lead shatter-proof. Built in colour indicator for easy identification of insulation damages.
Technical data |
|
| rated voltage | 30 VAC / 60 VDC |
| measurement cat. acc. to IEC 61010 | O (2) |
| rated current (consider derating curve) |
16 A |
| material plug | brass, nickel plated |
| housing material | PA |
| temperature range acc. To IEC61010(1) | -15 °C to +70 °C |
| inflammability class acc. to UL 94 (only valid for basic material of housing) |
V-2 |
| cable length | 150 cm |
| conductor size | 1 mm² |
| cable material | PVC |
